MES™

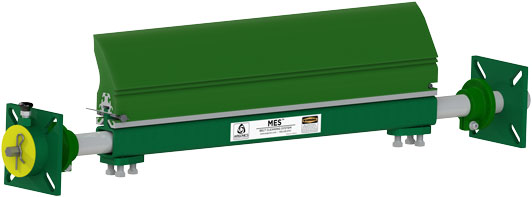

The MES cleaner is a low-maintenance, high-performance cleaner with a low-profile, compact design. It uses our 6″ tall polyurethane blade, and the universal mounting plates are designed to allow the cleaner to replace other OEM conveyor cleaners. The MES uses a unique internal tensioning system that allows for quick and easy tensioning.

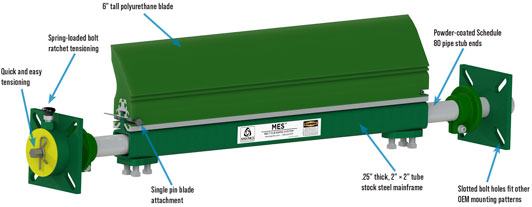

Benefits
- Quick and easy to tension with our spring-loaded bolt ratchet system
- Retrofits conveyors that use other OEM systems with slotted bolt holes on mounting brackets
- Allows grasshopper conveyors to be placed closer together; very compact mounting footprint only protrudes 3″ (76mm) from mounting structure
- No hoses, cables, shocks or mud-packed components to deal with
- Single pin blade attachment means quick and simple blade change out with less downtime

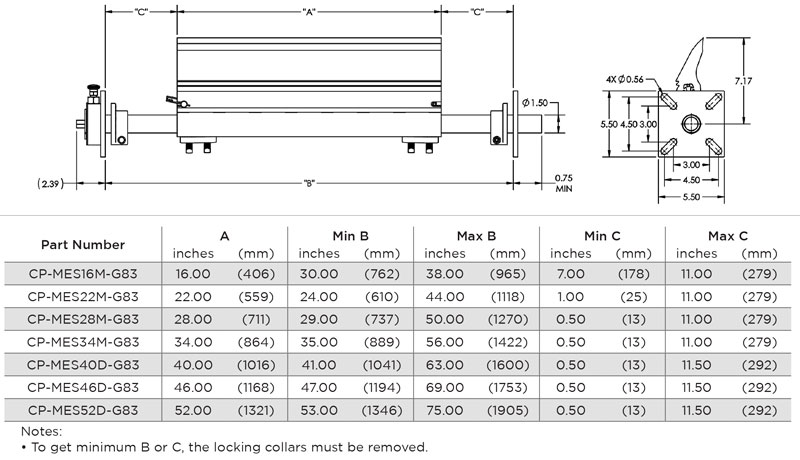

Specifications
Recommended Belt Speeds

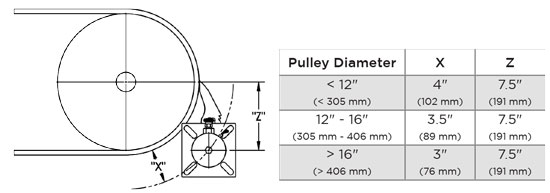

Pulley Diameter (PD)
- Minimum: 8″ (203 mm)
- Maximum: 20″ (508 mm)
