Chevron Belt Cleaner

The Chevron Belt Cleaner is specially designed to effectively remove carryback from challenging chevron, cleated, or raised rib conveyor belts. Its flexible polyurethane fingers ensure efficient cleaning without causing any damage to the belt. The powder-coated mounting brackets offer two attachment options to suit your specific operational needs.

  • Argonics chevron belt cleaner
Benefits
  • 9.5″ tall blade sections with 6″ tall fingers
  • 6″ wide blade sections easily slide onto mainframe for quick and simple replacement
  • Won’t damage chevron, cleated, or raised rib belts
  • Suitable for both mechanically spliced and vulcanized belts
  • No external springs or components prone to material build-up, minimizing maintenance requirements
  • Well-suited for industries like sand processing, biomass power plants, recycling, agriculture, food processing, timber, paper manufacturing, and port loading facilities
Specifications

Recommended Belt Speeds:

  • 0-500 fpm (2.5 m/s)

Mounting Distance:

  • Horizontal: 1-9″ (25-229 mm)
  • Vertical: 0-6″ (0-152 mm)
Blade Durometer Options

System comes standard with G83 durometer polyurethane finger blades. For other formulations, please contact Argonics.

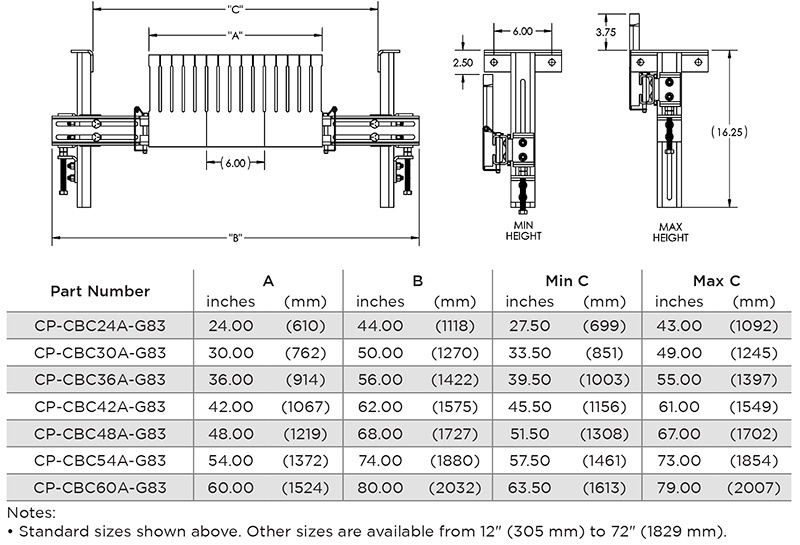

Sizing Information

Chevron belt cleaner sizing info

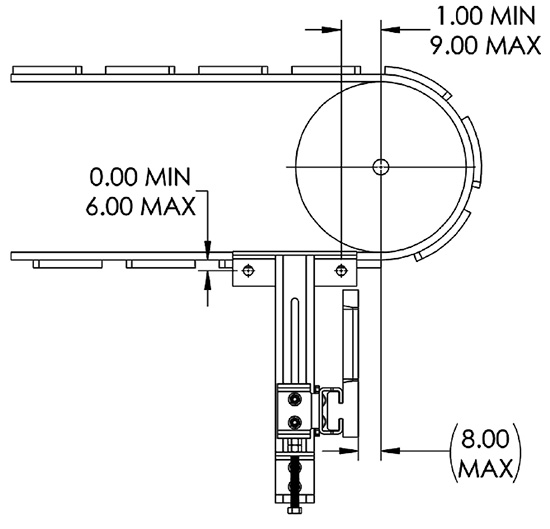

Mounting Information

Chevron cleaner mounting info

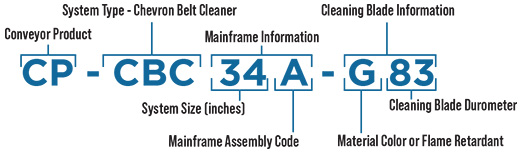

Part Numbering

Chevron cleaner nomenclature
